I-40

  • Angle: 50° - 360°

  • RECOMMENDED PRESSURE RANGE : 2.5 - 7.0 bar

  • FLOW RATE : 15 mm./hr.

  • Angle of elevation  : 25°

Nozzle choices: 12

Radius: 13.1 - 23.2 meters

Flow rate: 1.63 - 6.84 cubic meters/hour.

Water inlet thread:  1" BSP

I-40 Main.png

I-40-04

I-40-06

Models stainless steel riser: 10 cm, 15 cm

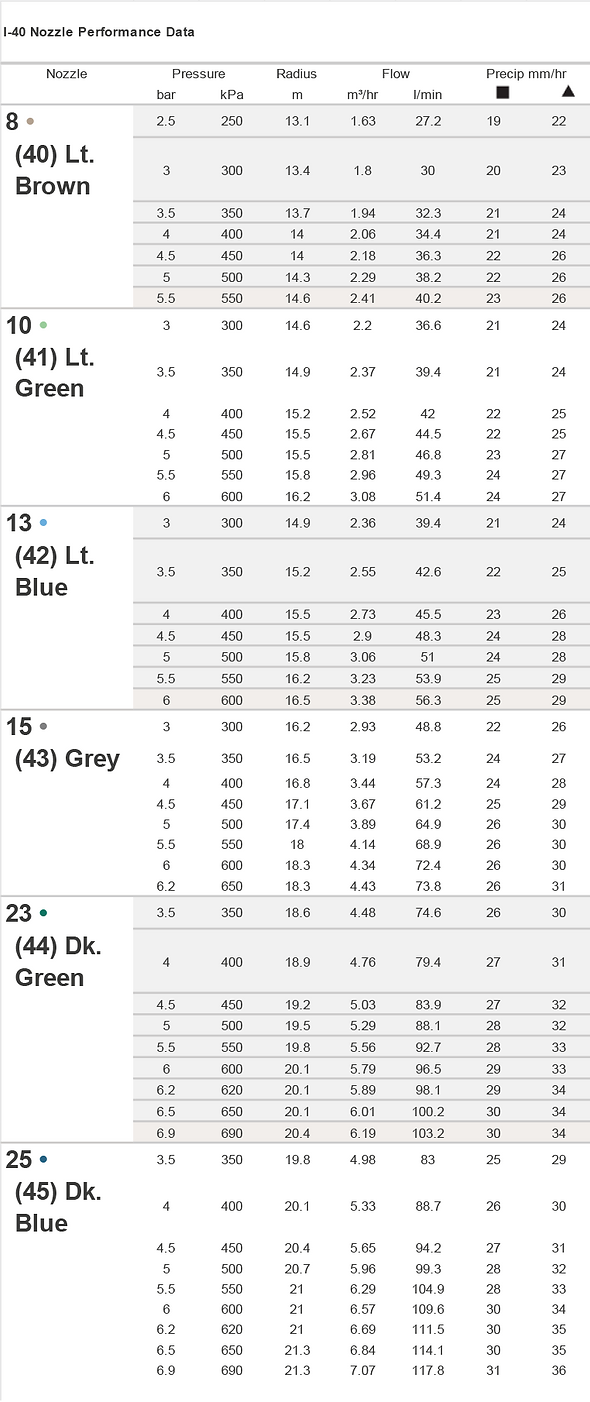

I-40 Table 1.png

Notes:

All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

I-40 Table 2.png

Notes:

All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

I-40 Table 3.png

Notes:

All precipitation rates calculated for 360 degree operation.
