MP ROTATOR

เรียนรู้เพิ่มเติม คลิ้ก!

FEATURES

  • Radius can be reduced up to 25% on all models

  • Easy to adjust the angle

  • Color-coded for easy identification

  • Removable filter screen ensures hassle-free service

  • Wind-resistant multi-stream technology

ADVANCED FEATURES

  • RECOMMENDED PRESSURE RANGE: 2.8 bar

  • Recommended filter if use with dirty water

Option

  • using with Pro-Spray® PRS40 that has Pressure Regulators at 2.8 bar

  • “HT” model is outlet

MP1000 - RADIUS 2.5 - 4.6 M.

MP100090

90° - 210°

MP1000210

210° - 270°

MP1000360

360°

MP2000 - RADIUS4.0 - 6.4 M.

MP200090

90° - 210°

MP2000210

210° - 270°

MP2000360

360°

MP3000 - RADIUS 6.7 - 9.1 M.

MP300090

90° - 210°

MP3000210

210° - 270°

MP3000360

360°

MP3500 - RADIUS 9.4 - 10.7 M.

MP350090

90° - 210°

MP Corners and Strips

MPLCS515

Left Corner

1.5 x 4.6 m

MPRCS515

Right Corner

1.5 x 4.6 m

MPSS530

Side Strip

1.5 x 9.1 m

MPCORNER

Corner

2.5 - 4.5 m

Male Threaded

MP-HT

Male-threaded

MP800SR - RADIUS 1.8 - 3.5 M.

MP800SR-360

360°

MP800SR-90

90° to 210°

MP815 - RADIUS 2.5 - 4.9 M.

MP815-360

360°

MP815-210

210° to 270°

MP815-90

90° to 210°

MP1000

Adjustable Arc & Full Circle

Maroon: 90° to 210°

Lt. Blue: 210° to 270°

Olive: 360°

MP2000

Radius:4.0 to 6.4 m

Adjustable Arc & Full Circle

Black: 90° to 210°

Green: 210° to 270°

Red: 360°

MP3000

Radius:6.7 to 9.1 m

Adjustable Arc & Full Circle

Blue: 90° to 210°

Yellow: 210° to 270°

Grey: 360°

MP3500

Radius:9.4 to 10.7 m

Adjustable Arc & Full Circle

Lt. Brown: 90° to 210°

Bold = Recommended pressure

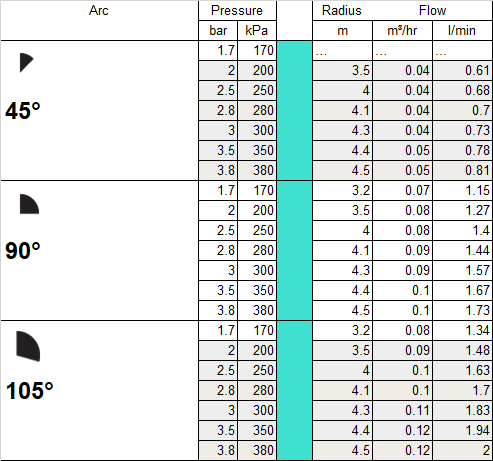

MPCorner

Radius: 2.5 to 4.5 m

Adjustable Arc: 45° to 105°

Color Code: Turquoise

Bold = Recommended pressure

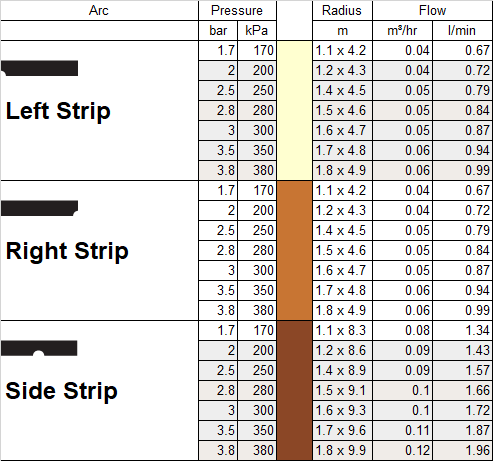

MP Rotator Performance Data Side Strips

MPLCS515: Ivory Left Strip

MPRCS515: Copper Right Strip

MPSS530 Brown Side Strip

Bold = Recommended pressure

Note: Strip pattern radius can be adjusted by 25%. MP Rotator is designed

         to maintain matched precipitation after radius adjustment.

MP800SR

Radius:1.8 to 3.5 m

Adjustable Arc

Orange and Gray: 90° to 210°

Lime Green and Gray: 360°

Bold = Optimal pressure for the MP Rotator is 2.8 bar; 280 kPa. This can easily be achieved by using the MP Rotator with the Hunter PRS40 Spray Body, pressure regulated at 2.8 bar; 280 kPa.

* Flow and precipitation rates may change as a result of reducing radius.

MP815

Radius: 2.5 to 4.9 m

Adjustable Arc & Full Circle

Maroon and Gray: 90° to 210°

Lt. Blue and Gray: 210° to 270°

Olive and Gray: 360°

Bold = Optimal pressure for the MP Rotator is 2.8 bar; 280 kPa.

This can easily be achieved by using the MP Rotator with the Pro-Spray PRS40, pressure regulated at 2.8 bar; 280 kPa.
